Portable Traffic Lights

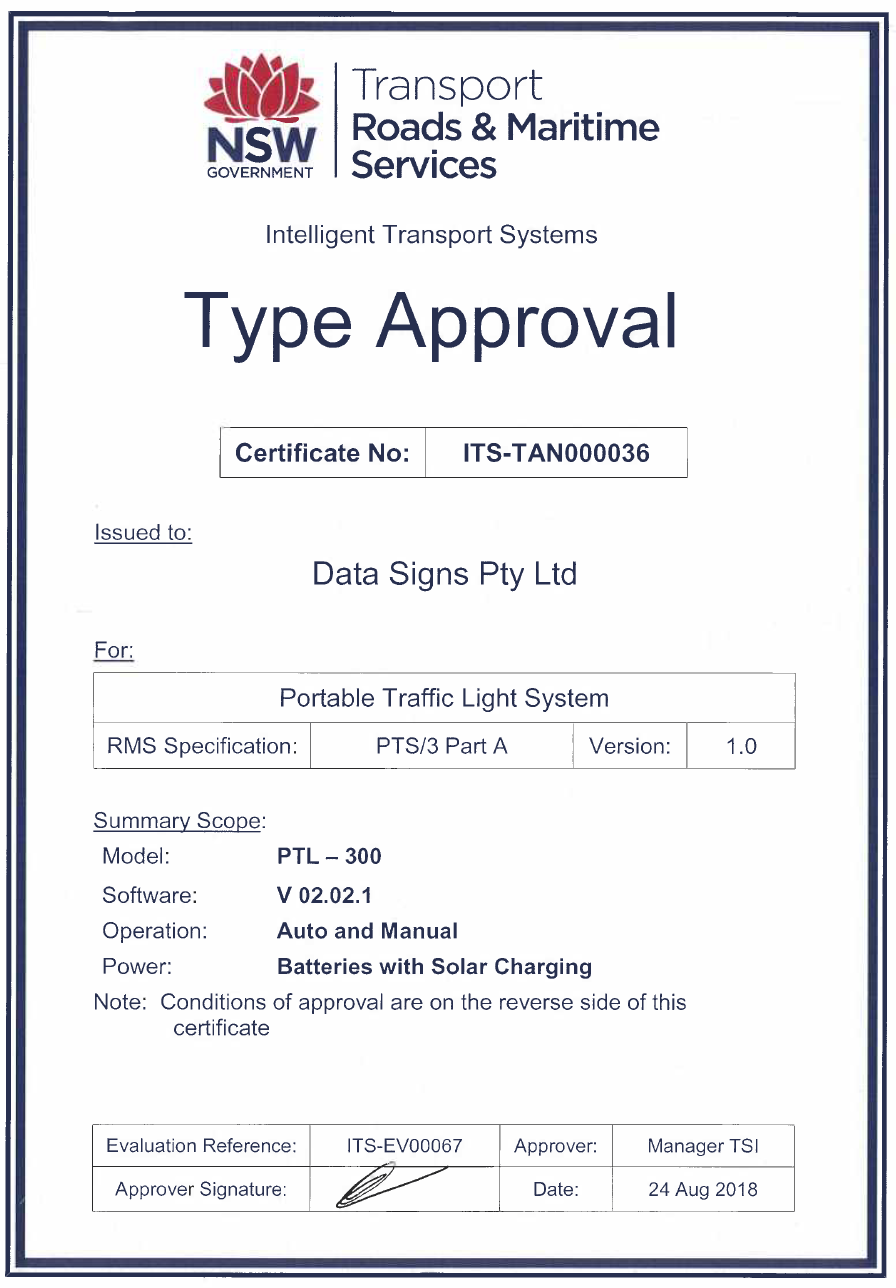

Portable Traffic Lights (PTL) by Data Signs are RMS Type Approved for use on NSW Roads and built to recently updated Australian Standard AS 4191:2015 for Portable Traffic Signal Systems, and to Australian Design Rules for Trailer Manufacturing. PTL’s are an integral traffic management tool for use on roadwork sites or for event traffic control. Data Signs has developed an easy-to-use Controllers for use on its traffic lights.

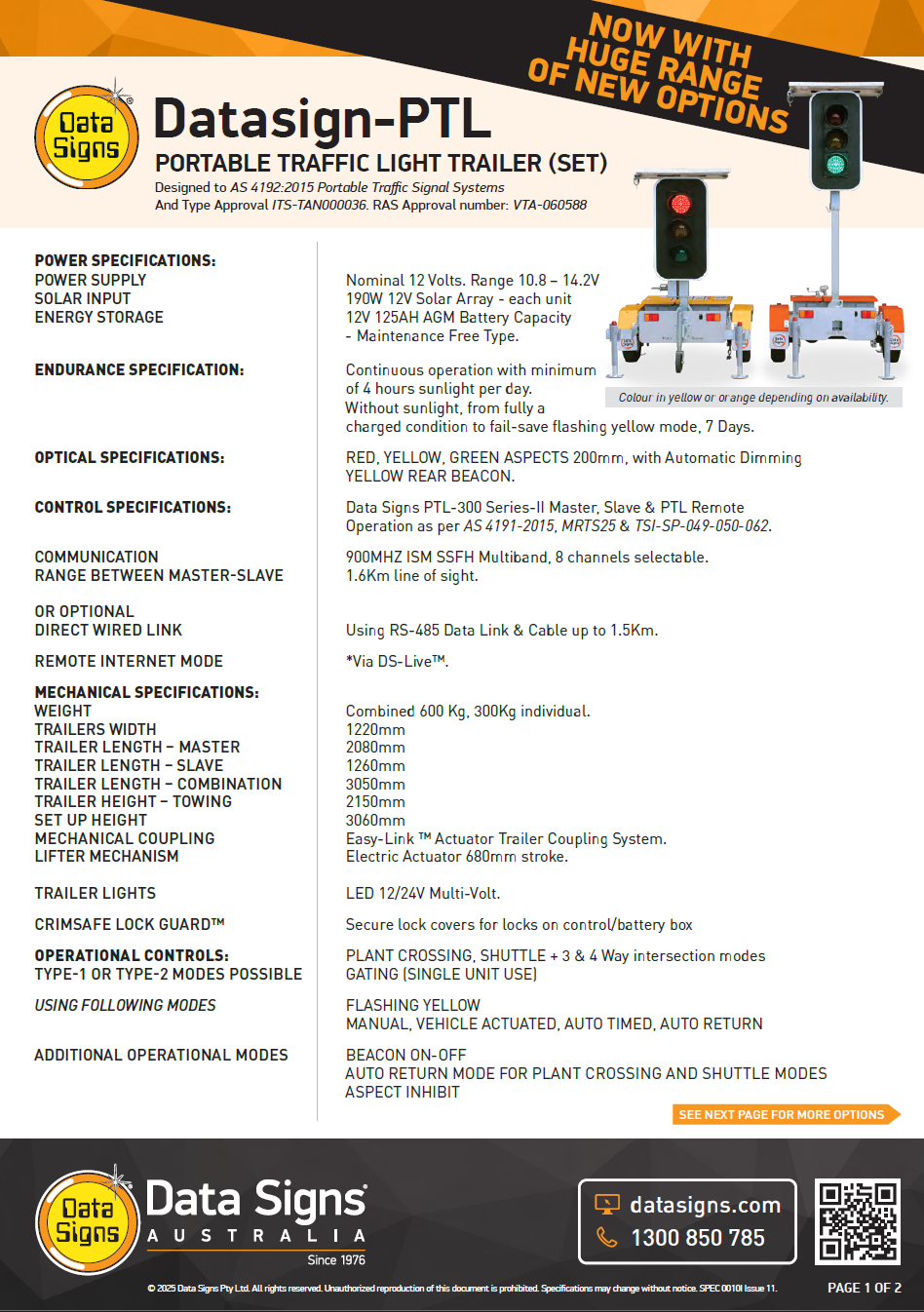

PTL TRAILER

Traffic Signal Portable

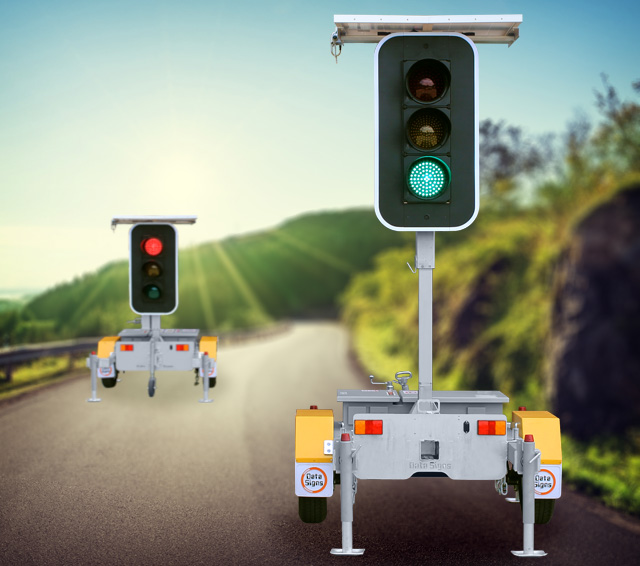

Dual-trailer set PTL (can be towed separately using optional slave drawbar) are solar-powered with maintenance-free batteries for continuous operation. The 200mm aspects use ultra-bright LED's for optimal viewing. The PTL sets maintain constant RF (radio frequency) communication with the each other, as required by Australian Standard AS 4191:2015 for Portable Traffic Signal Systems.

Normal RF operating range is up to 1.6km line-of-sight, with our hi-gain directional antennas installed as standard subject to environmental conditions or Hardwired Option where Line of Sight cannot be achieved.

Features include quick one person set-up, extendable outriggers for greater stability, full electric mast, hot dipped galvanised chassis, industrial paint finish and powder coating.

The unit can be controlled using:

Optionally a PTL can be fitted with a vehicle detector to switch the lights on demand as a car approaches the traffic light.

We have a suite of PTLs to suit various situations and usage. PTL Trailers are the top of the range with a robust design that can be left unattended. PTL Compact is a lite foldaway version of the PTL trailer for simple short term usage on a site. PTL Stop-n-Go is our latest product replacing the Stop/Slow Hand Baton or Lollipop Sign to keep your road maintenance team safe.

PTL OPTIONS

Smart Terminal Remote RF Long Range Remote
DS-Live Internet Mode Built-in Charger
Pedestrian Crossing
Countdown Timer
Vehicle Detection (Demand mode)
Double Sided Lights
PTL Direct Connect and Cable Reel

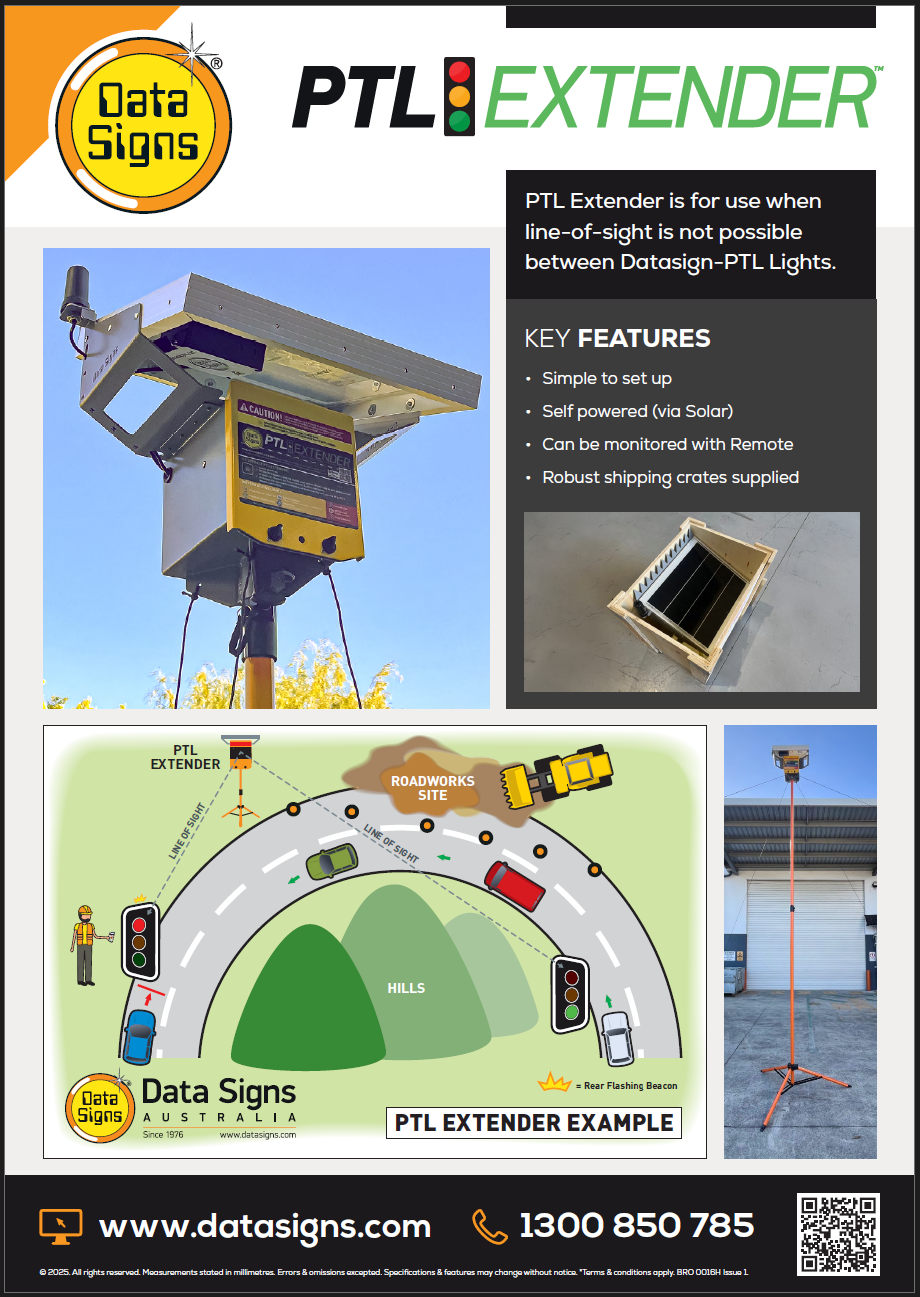

PTL Range Extender

Click the image for more information

PTL-Suite

PTL Trailer Setup

PTL Trailer Pack Up

Connect using Smart Terminal

Various operational control functions are available; multiple-set functionality for 1-6 way applications, include:

  • Single Gate Control

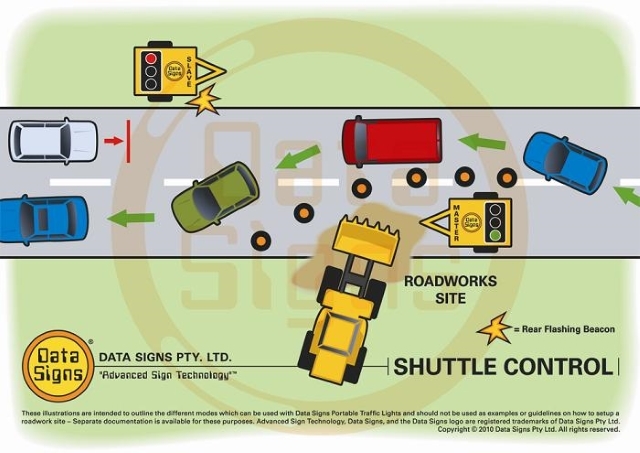

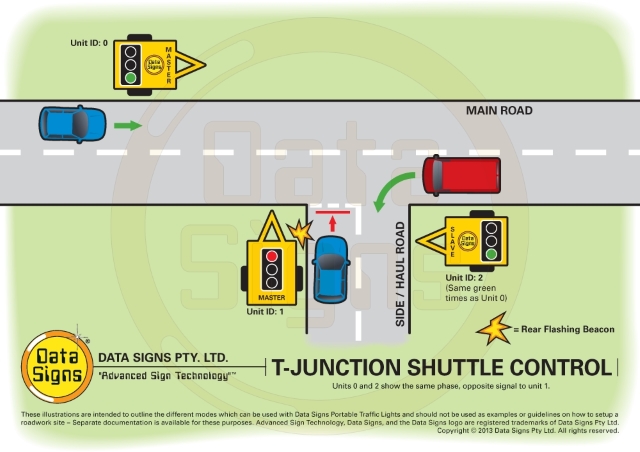

  • 2-Way Shuttle Control
  • Copy Mode

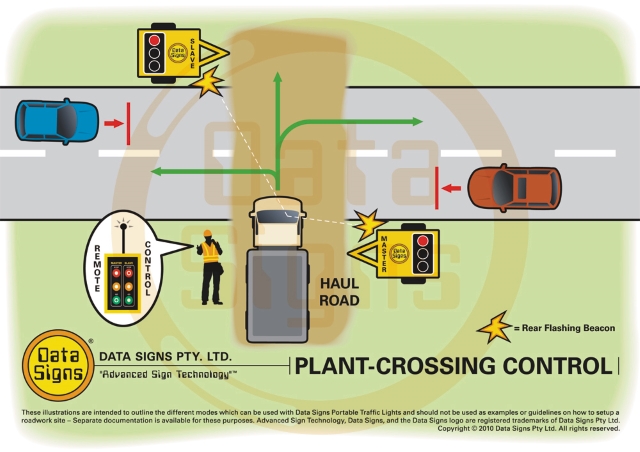

  • 2-Way Plant Crossing Control

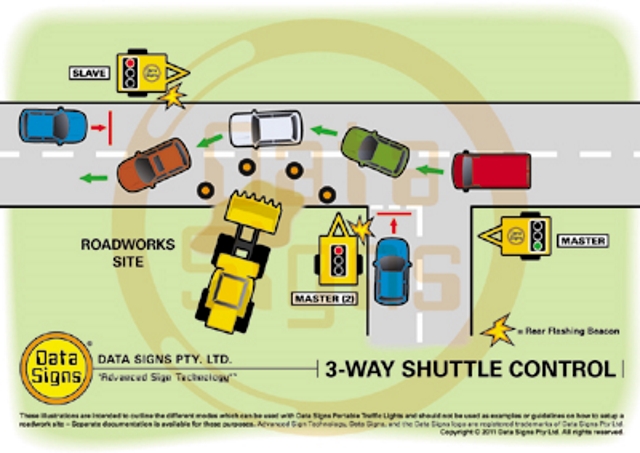

  • 3-Way Shuttle Control*
  • 3-Way Intersection Control*

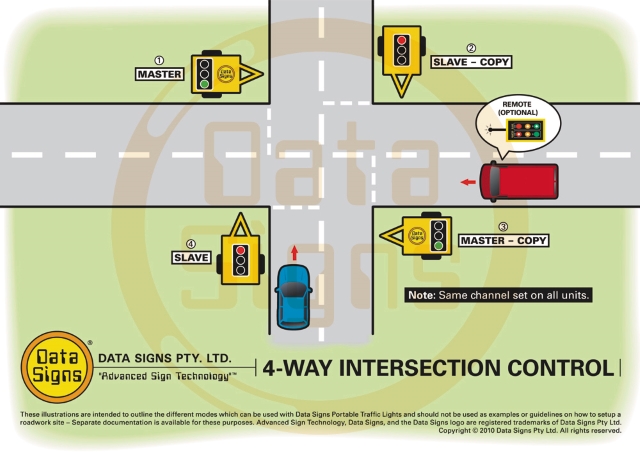

  • 4-Way Intersection Control*

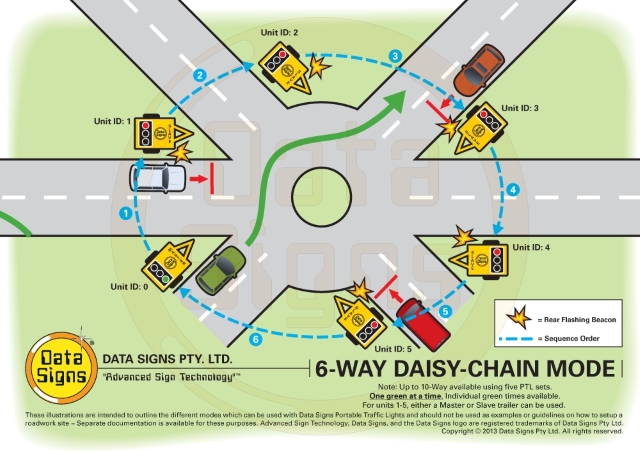

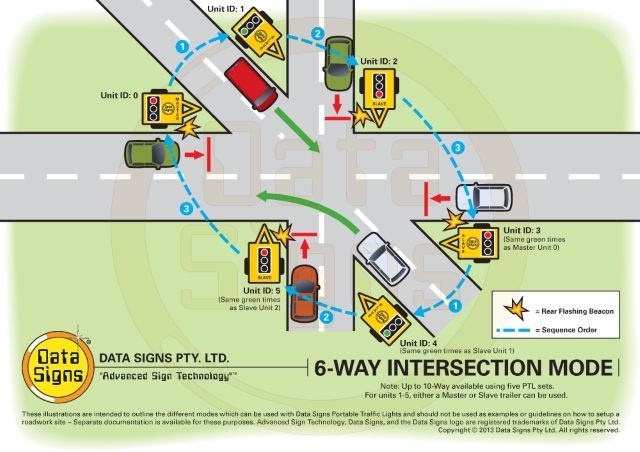

  • Multi Daisy-Chain*
  • Setup upto 10 PTLs unit via DS-Live.
*Note - These Mode(s)/Function(s) do not form part of RMS/RTA Type Approval


Operational Modes
